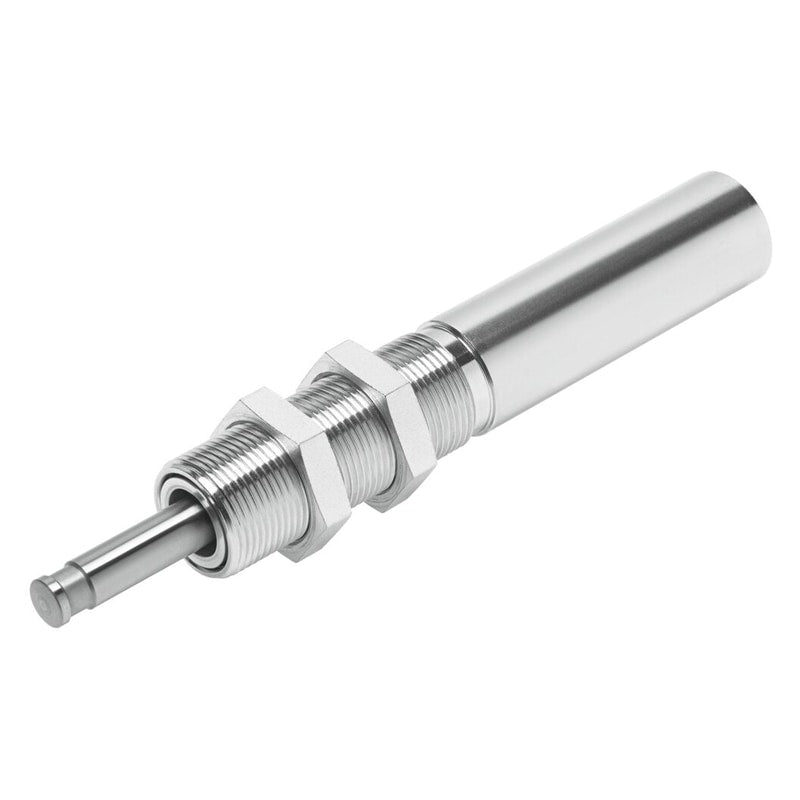

Shock absorber
DYSR-12-12-Y5
1138642
GTIN 4052568227326
Vendor Festo
- Stroke
- 12 mm
- Max. energy absorption per stroke
- 10.8 J
- Cushioning
- Adjustable
Regular price
$299.38
Unit price
DYSR-12-12-Y5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DYSR-12-12-Y5
Regular price
$299.38
Unit price
DYSR-12-12-Y5 is backordered and will ship as soon as it is back in stock.
shock absorber DYSR-12-12-Y5 Size=12, Stroke=12 mm, Cushioning=adjustable, Assembly position=Any, Position detection=No
| Size | 12 |
|---|---|
| Stroke | 12 mm |
| Cushioning | adjustable |
| Assembly position | Any |
| Position detection | No |
| Max. impact speed | 3 m/s |
| Reset time short | 0.2 s |
| Reset time long | 1 s |
| Mode of operation | single-actingpushing action |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Cushioning length | 12 mm |
| Max. stop force | 900 N |
