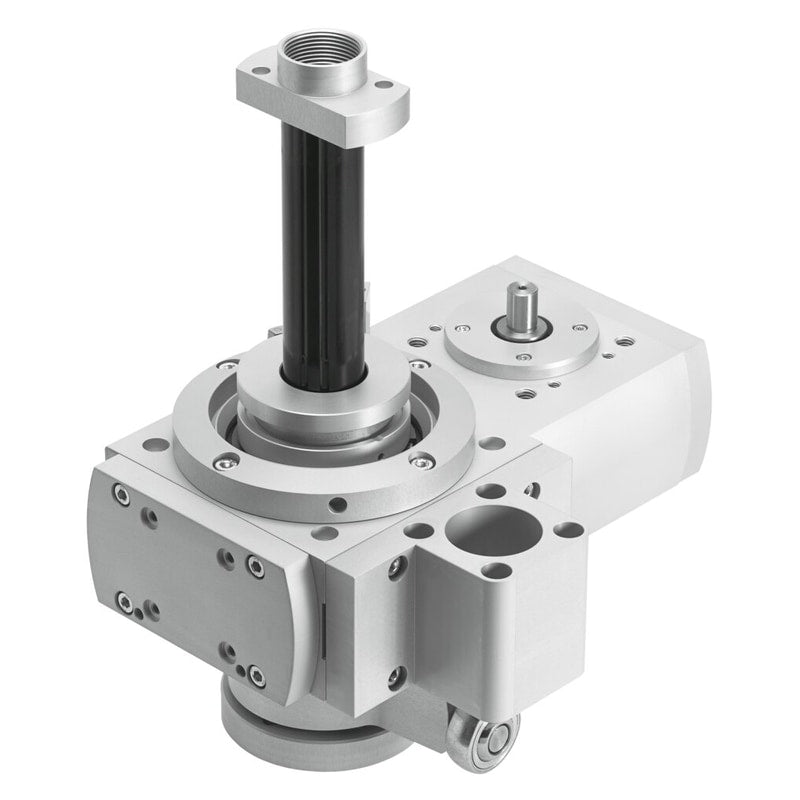

Rotary/lifting module
EHMB-32-100
1098558
GTIN 4052568226893
Vendor Festo
- Max. driving torque
- 6.7 Nm
- Max. input speed
- 900 1/min
- Rotation angle
- Infinite
Regular price
$6,519.18
Unit price
EHMB-32-100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EHMB-32-100
Regular price
$6,519.18
Unit price
EHMB-32-100 is backordered and will ship as soon as it is back in stock.
rotary/lifting module EHMB-32-100 Drive pinion diameter=12 mm, Working stroke=0 - 100 mm, Size=32, Rotation angle=Endless, Toothed-belt pitch=5 mm
| Drive pinion diameter | 12 mm |
|---|---|
| Working stroke | 0 ... 100 mm |
| Size | 32 |
| Rotation angle | Endless |
| Toothed-belt pitch | 5 mm |
| Assembly position | Any |
| Type of gear unit | Toothed belt drive |
| Design structure | Electromechanical rotary stroke moduleWith toothed belt |
| Gear unit ratio | 0.125694444444444 |
| Max. output speed | 300 1/min |
| Max. input speed | 900 1/min |
| Ambient temperature | '-10 ... 60 °C |
| Max. drive torque | 6.7 Nm |
