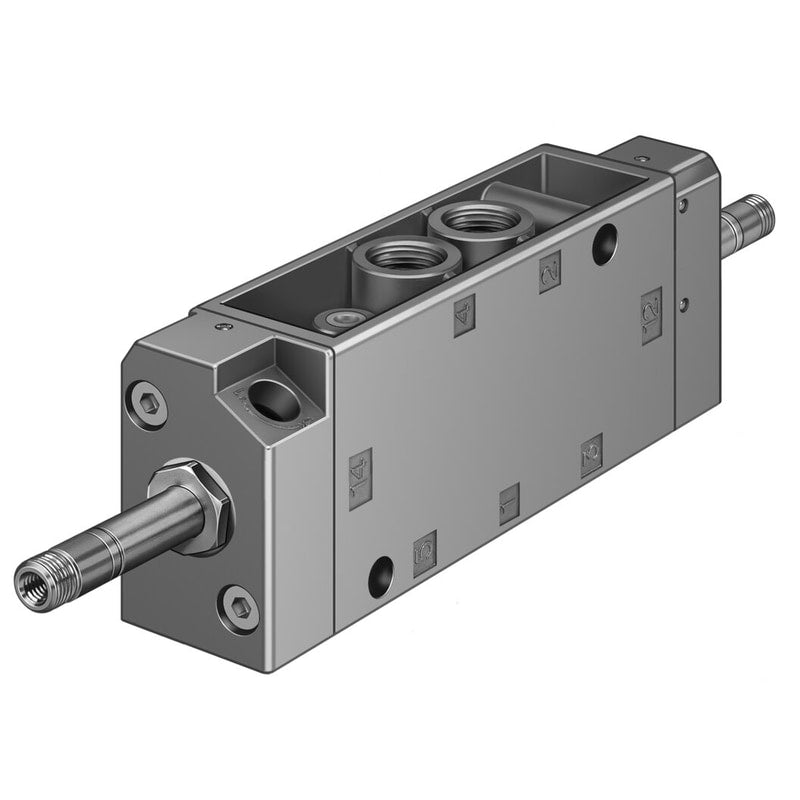

Air solenoid valve
JMFH-5-1/4-NPT
10876
GTIN 4052568303723
Vendor Festo
Regular price
$376.34
Unit price
JMFH-5-1/4-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMFH-5-1/4-NPT
Regular price
$376.34
Unit price
JMFH-5-1/4-NPT is backordered and will ship as soon as it is back in stock.
solenoid valve JMFH-5-1/4-NPT With manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function=5/2 bistable, Type of actuation=electrical, Valve size=30,5 mm, Width=30,5 mm, Standard nominal flow rate=1100 l/min

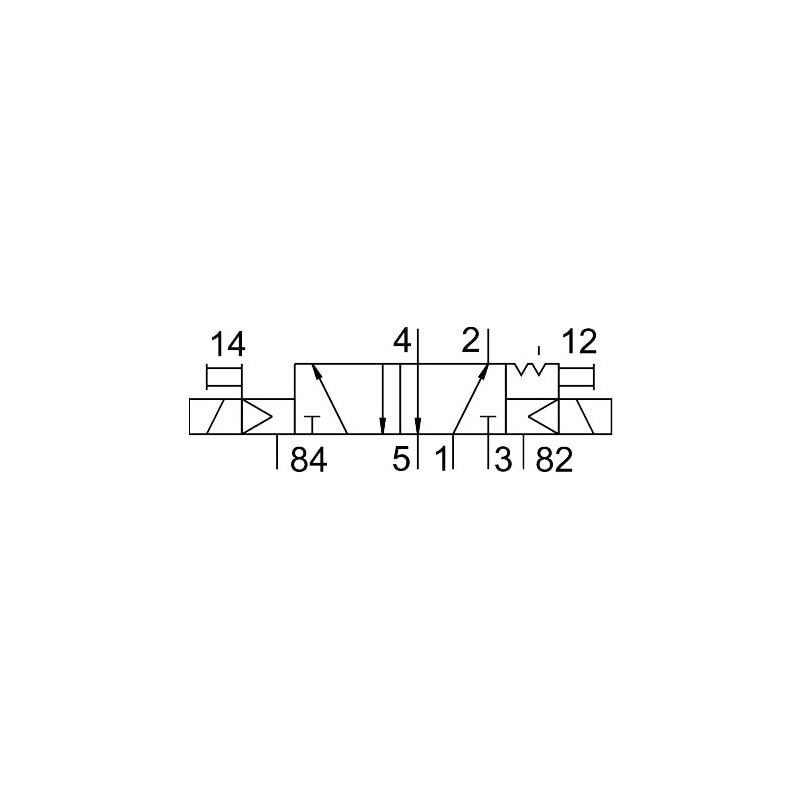

| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Valve size | 30.5 mm |
| Width | 30.5 mm |
| Standard nominal flow rate | 1,100 l/min |
| Operating pressure | 1.5 ... 8 bar |
| Design structure | Poppet seat |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
