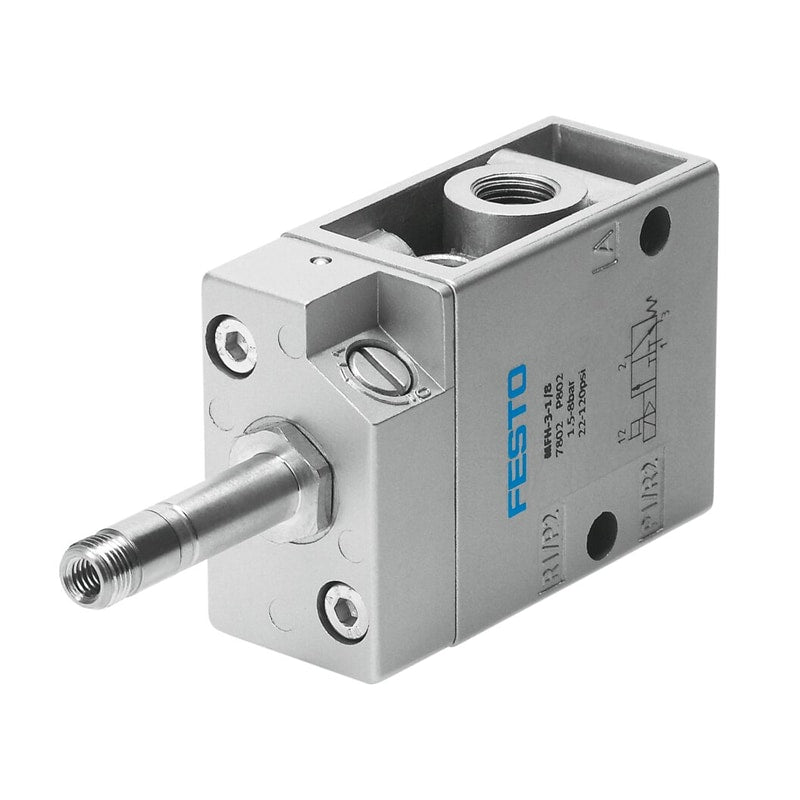

Air solenoid valve
MFH-3-1/8-S-NPT
10872
GTIN 4052568303693
Vendor Festo
Regular price
$235.71
Unit price
MFH-3-1/8-S-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-3-1/8-S-NPT
Regular price
$235.71
Unit price
MFH-3-1/8-S-NPT is backordered and will ship as soon as it is back in stock.
solenoid valve MFH-3-1/8-S-NPT Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=26 mm, Standard nominal flow rate=500 l/min, Operating pressure=-0,95 - 10 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Standard nominal flow rate | 500 l/min |
| Operating pressure | '-0.95 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
