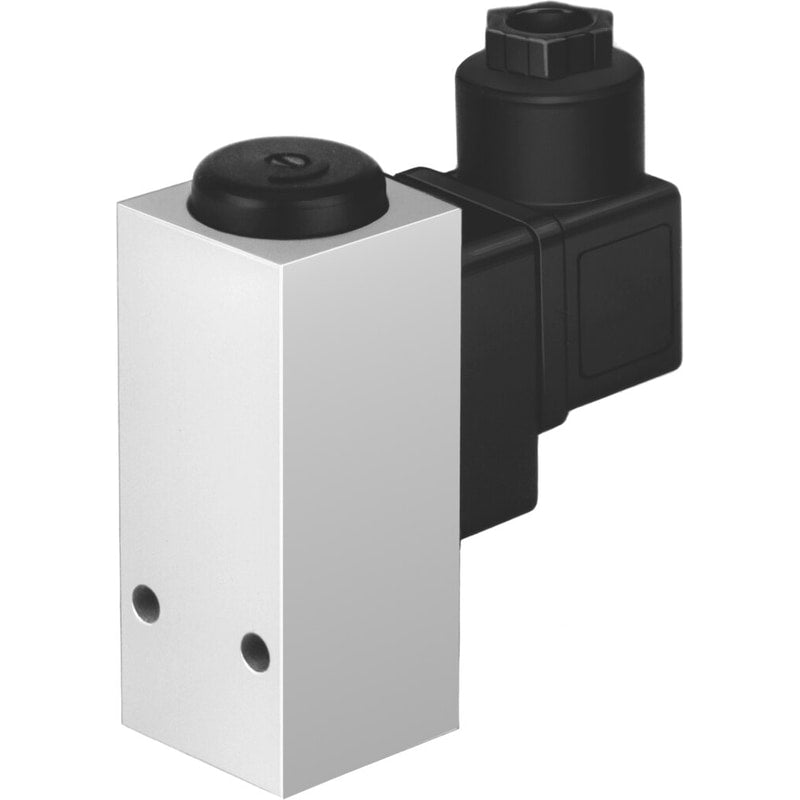

Pressure switch
PEV-1/4-B
10773
GTIN 4052568002299
Vendor Festo
Regular price
$229.33
Unit price
PEV-1/4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEV-1/4-B
Regular price
$229.33
Unit price
PEV-1/4-B is backordered and will ship as soon as it is back in stock.
pressure switch PEV-1/4-B Conforms to standard=EN 60947-5-1, Authorisation=CCC, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Materials note=Conforms to RoHS, Measured variable=Relative pressure
| Conforms to standard | EN 60947-5-1 |
|---|---|
| Authorisation | CCC |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | 1 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 80 °C |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
