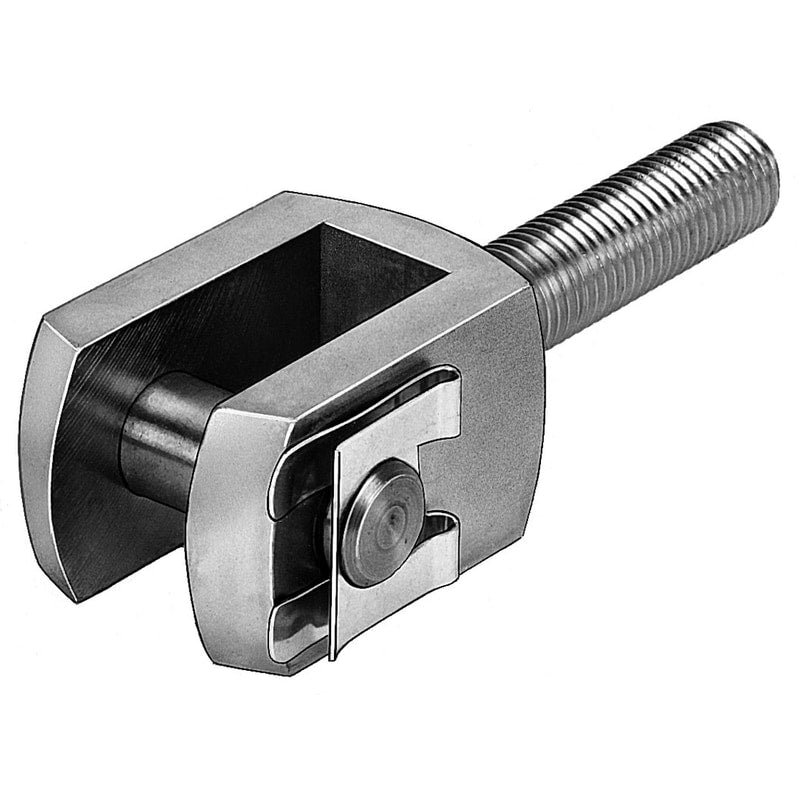

Rod clevis
SGA-M36X2
10771
GTIN 4052568111793
Vendor Festo
Regular price
$713.39
Unit price
SGA-M36X2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SGA-M36X2
Regular price
$713.39
Unit price
SGA-M36X2 is backordered and will ship as soon as it is back in stock.
rod clevis SGA-M36X2 With male thread, for swivelling cylinder mounting. Size=M36x2, Radial deviation +/-=5 mm, Angle compensation +/-=120 deg, Assembly position=Any, Threaded connection=Male thread M36x2
| Size | M36x2 |
|---|---|
| Radial deviation +/- | 5 mm |
| Angle compensation +/- | 120 deg |
| Assembly position | Any |
| Threaded connection | Male thread M36x2 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 3,938 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting pin | steel, galvanized |
| Material rod eye | SteelGalvanised |
| Material lock | Spring steel, galvanised |
