Plug socket

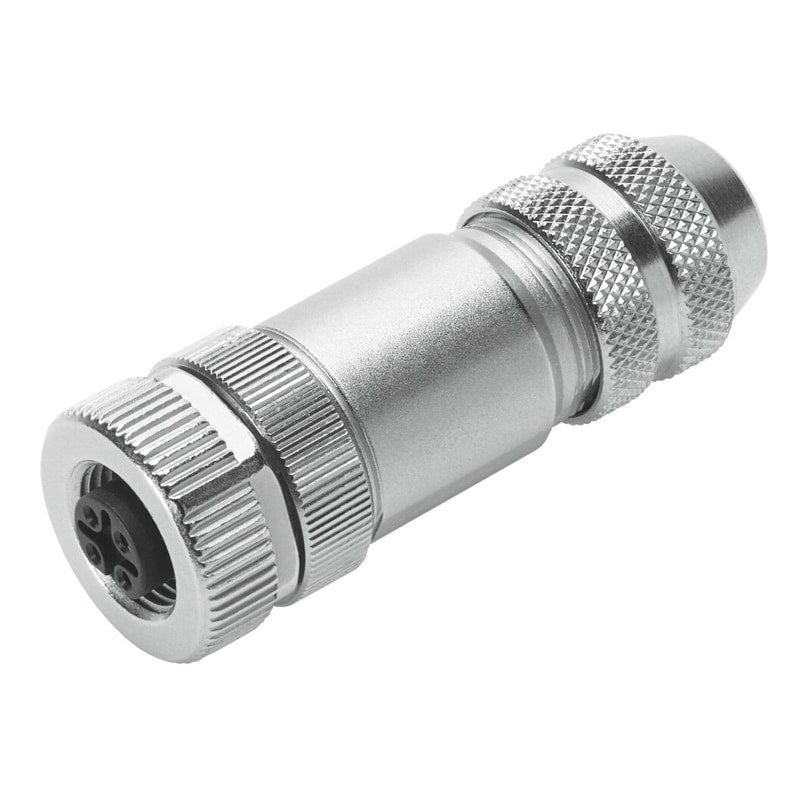

NECU-M-B12G5-C2-PB
1067905
GTIN 4052568104856
Vendor Festo
- Connection cross section
- 0.14 mm² - 0.75 mm²
- Degree of protection
- IP67
Regular price
$52.72
Unit price
NECU-M-B12G5-C2-PB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-M-B12G5-C2-PB
Regular price
$52.72
Unit price
NECU-M-B12G5-C2-PB is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Based on norm | EN 61984EN 61076-2-101 |
| Electrical connection 1 | Straight socket, M12x1, 5-pin, B-coded, shieldable |
| Electrical connection 2 | Screw terminal, can be shielded |
| DC operating voltage range | 0 V ... 125 V |
| Operating voltage range AC | 0 V ... 125 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 1.5 kV |
| Approved cable diameter | 6 mm ... 8 mm |
| Connection cross section | 0.14 mm² ... 0.75 mm² |
| Degree of protection | IP67 |
| Ambient temperature | -25 °C ... 85 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | Die-cast zincNickel-plated |
| Material of pin contacts | Gold-platedBrass |
| Transmission characteristics | DIN EN 50173/CAT 5 |
| Plug coding | B |
