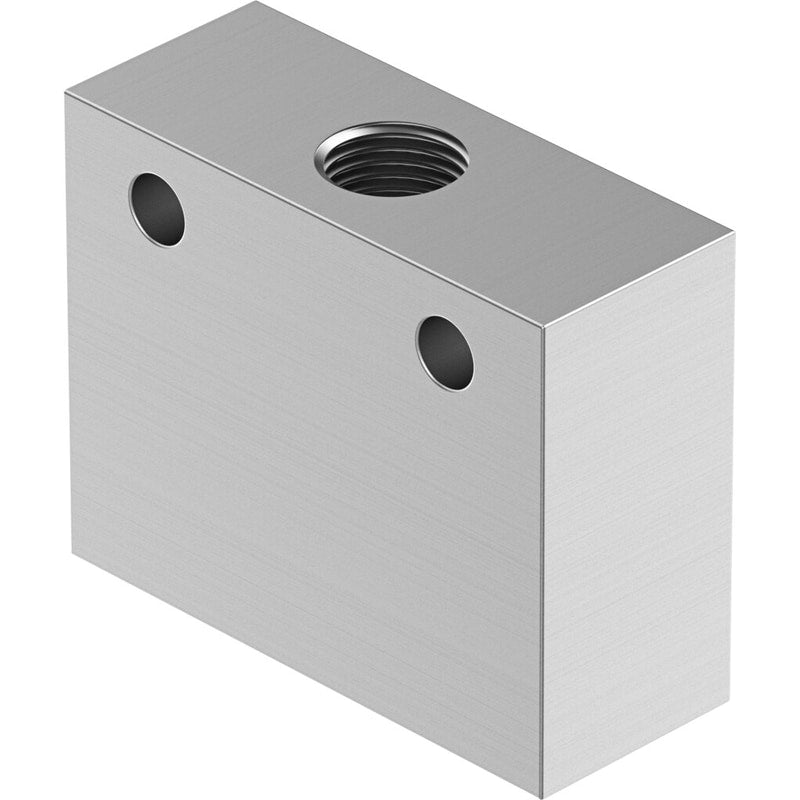

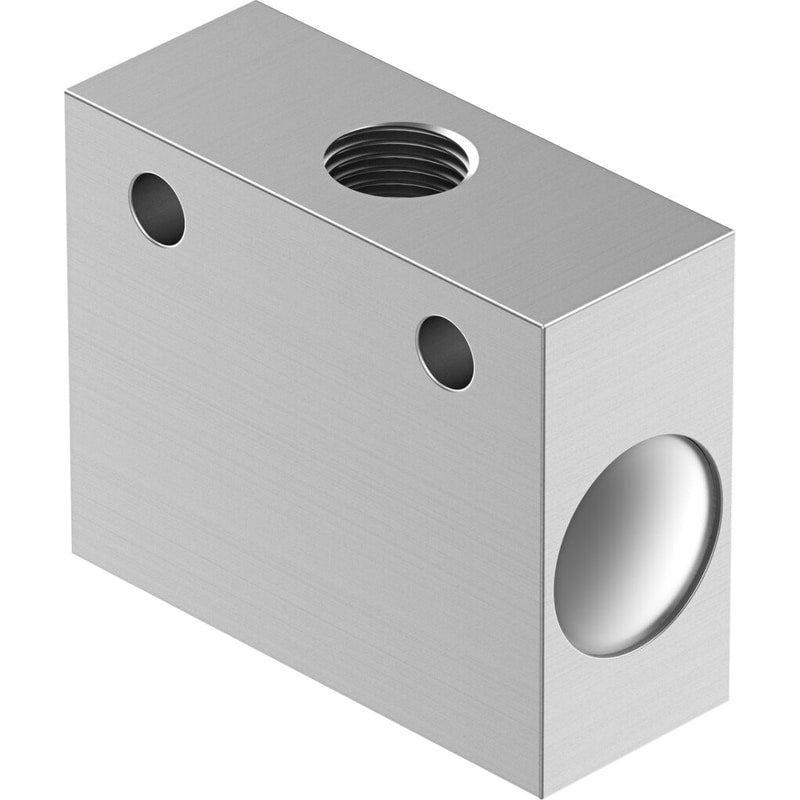

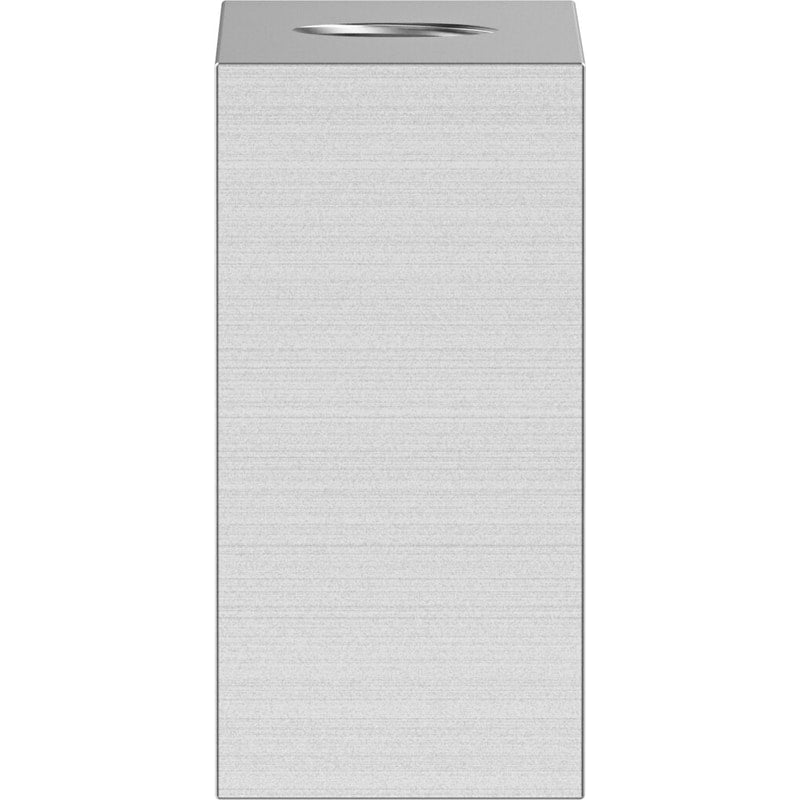

OR gate
OS-1/8-NPT
10412
GTIN 4052568303600
Vendor Festo
- Valve function
- OR function
- Pneumatic connection 1
- 1/8 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 500 l/min
- Operating pressure
- 1 bar - 10 bar
- Type of mounting
- With through-hole
Regular price
$66.17
Unit price
OS-1/8-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OS-1/8-NPT
Regular price
$66.17
Unit price
OS-1/8-NPT is backordered and will ship as soon as it is back in stock.
OR gate OS-1/8-NPT Valve function=OR function, Pneumatic connection, port 1=NPT1/8-27, Pneumatic connection, port 2=NPT1/8-27, Mounting type=with through hole, Standard nominal flow rate=500 l/min
| Valve function | OR function |
|---|---|
| Pneumatic connection, port 1 | NPT1/8-27 |
| Pneumatic connection, port 2 | NPT1/8-27 |
| Mounting type | with through hole |
| Standard nominal flow rate | 500 l/min |
| Operating pressure | 1 ... 10 bar |
| Ambient temperature | '-10 ... 60 °C |
| Material housing | Wrought Aluminium alloy |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Nominal size | 4 mm |
| Assembly position | Any |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
