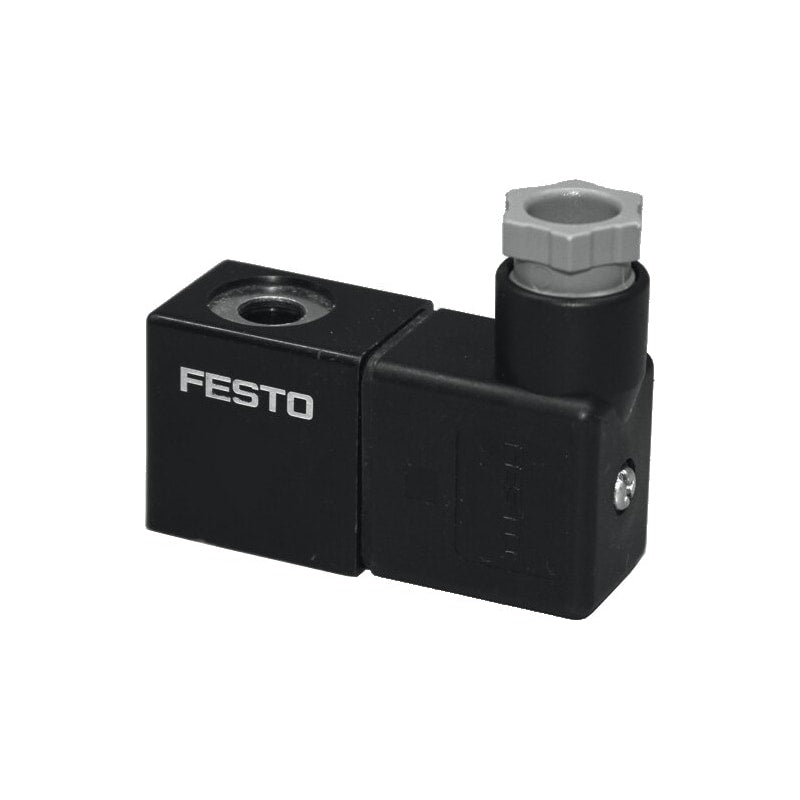

Solenoid coil
BMSFW-120/60-CSA
104080
GTIN 4052568307516
Vendor Festo
- Electrical connection
- 3-pin - Plug flags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Coil characteristics
- 120 V AC: 60 Hz, initial power 10.0 VA, holding power 8 VA
- Degree of protection
- IP65
Regular price
$60.49
Unit price
BMSFW-120/60-CSA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
BMSFW-120/60-CSA
Regular price
$60.49
Unit price
BMSFW-120/60-CSA is backordered and will ship as soon as it is back in stock.
solenoid coil BMSFW-120/60-CSA Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 120 V AC: 60 Hz, pick-up power 10 VA, holding power 8 VA |
| Permissible frequency fluctuation | '+/- 5 % |
| Permissible voltage fluctuation | '+/- 10 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Protection class | IP65 |
| Ambient temperature | '-5 ... 40 °C |
| Authorisation | CSA (OL) |
| Max. tightening torque, plug socket | 0.4 Nm |
