Air solenoid valve
MFH-5-1/8-S
10348
GTIN 4052568009021
Vendor Festo
Regular price
$251.21
Unit price
MFH-5-1/8-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-5-1/8-S
Regular price
$251.21
Unit price
MFH-5-1/8-S is backordered and will ship as soon as it is back in stock.

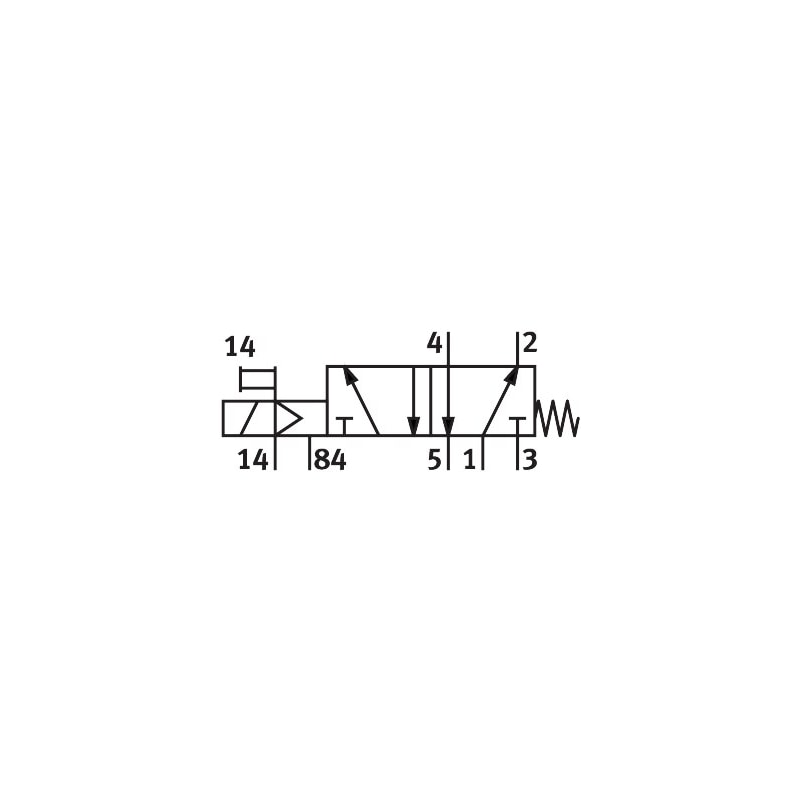

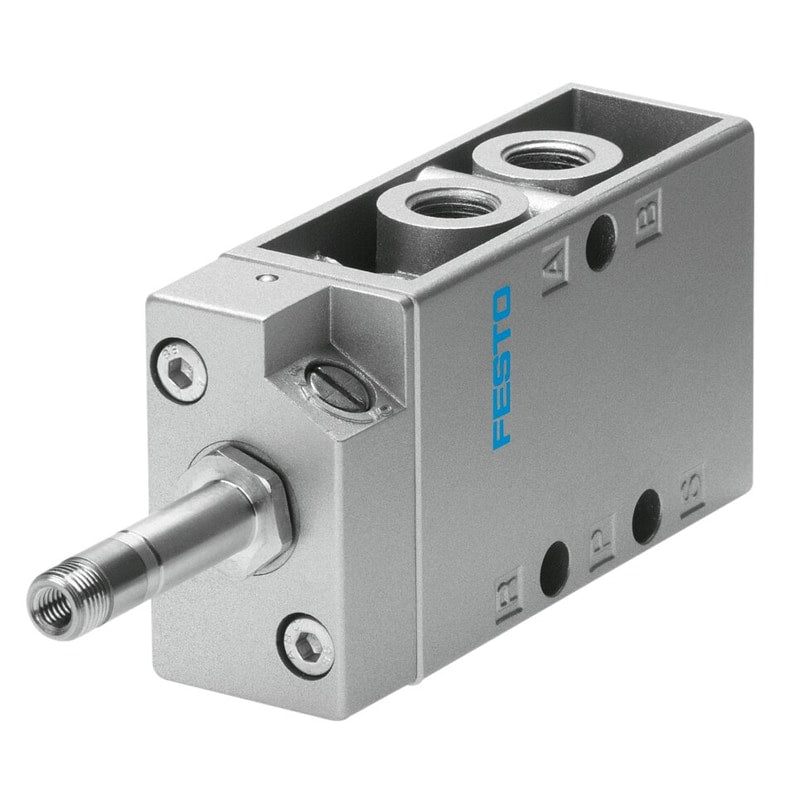

solenoid valve MFH-5-1/8-S With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=5/2 monostable, Type of actuation=electrical, Width=26 mm, Standard nominal flow rate=500 l/min, Operating pressure=0 - 10 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Standard nominal flow rate | 500 l/min |
| Operating pressure | 0 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
