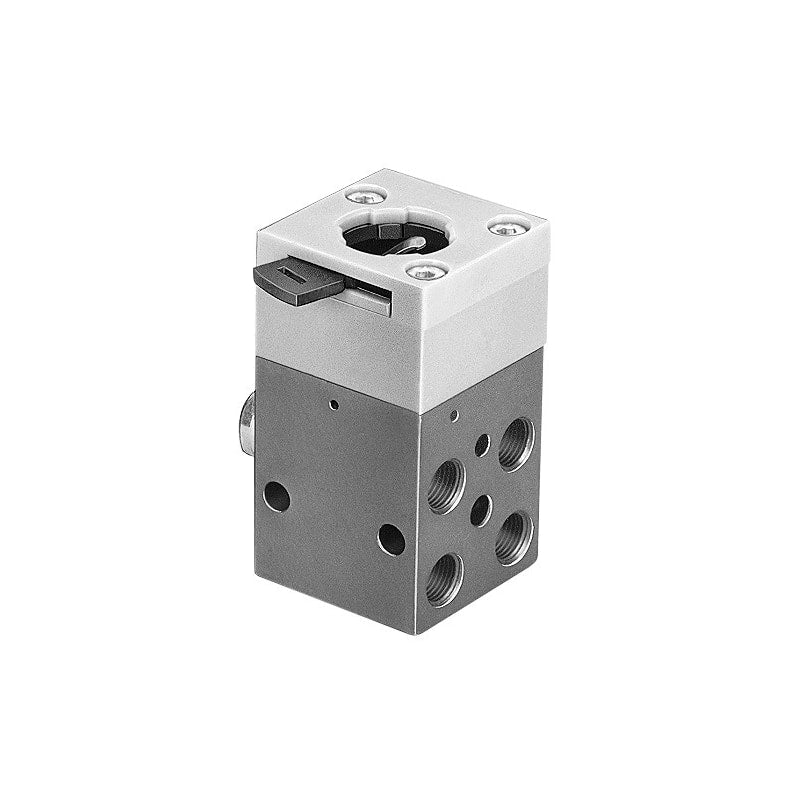

Front panel valve
SVS-4-1/8
10192
GTIN 4052568009014
Vendor Festo
Regular price
$281.42
Unit price
SVS-4-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SVS-4-1/8
Regular price
$281.42
Unit price
SVS-4-1/8 is backordered and will ship as soon as it is back in stock.
| Valve function | 4/2, monostable |
|---|---|
| Actuation type | Mechanical |
| Standard nominal flow rate | 120 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 3.5 bar ... 8 bar |
| Design | Piston seat |
| Reset method | Mechanical spring |
| Type code | SVS |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 991108 |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Ambient temperature | -10 °C ... 60 °C |
| Actuating force | 8 N |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Cover material | POM |
| Housing material | Aluminum |
