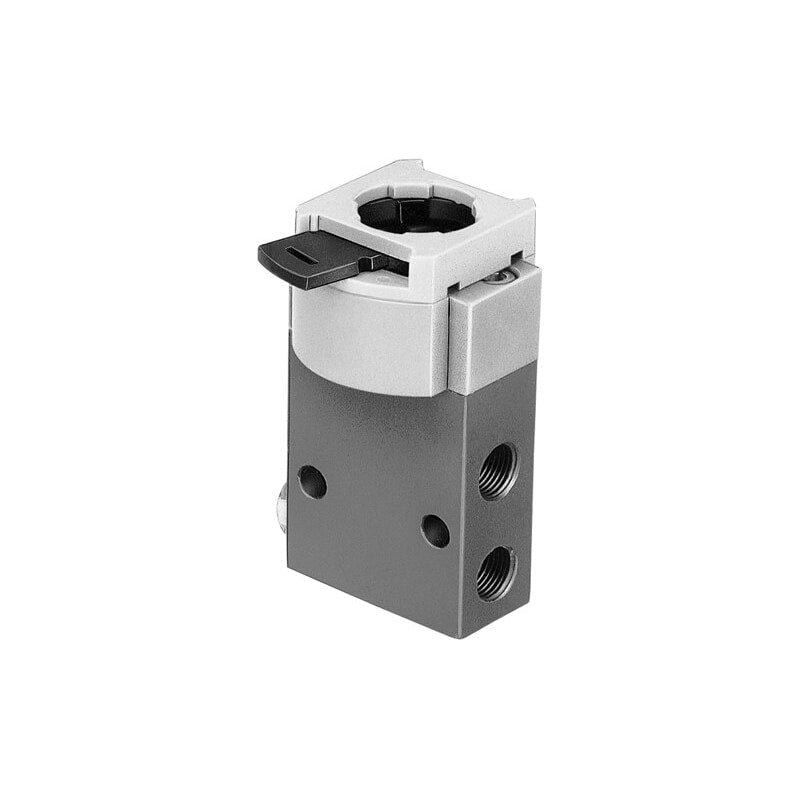

Front panel valve
SVOS-3-1/8
10191
GTIN 4052568111687
Vendor Festo
Regular price
$209.45
Unit price
SVOS-3-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SVOS-3-1/8
Regular price
$209.45
Unit price
SVOS-3-1/8 is backordered and will ship as soon as it is back in stock.
front panel valve SVOS-3-1/8 Valve function=3/2 open, monostable, Type of actuation=mechanical, Standard nominal flow rate=120 l/min, Operating pressure=3,5 - 8 bar, Design structure=Piston seat
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 120 l/min |
| Operating pressure | 3.5 ... 8 bar |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 8 N |
