SVS-3-1/8
Regular price
$209.45
Unit price
SVS-3-1/8 is backordered and will ship as soon as it is back in stock.

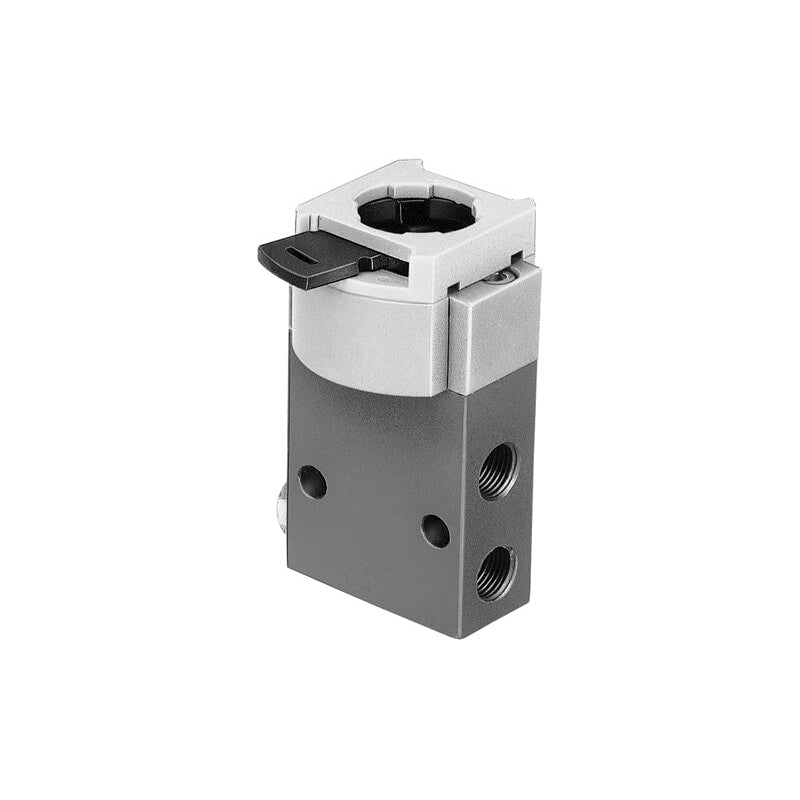

front panel valve SVS-3-1/8 Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=120 l/min, Operating pressure=3,5 - 8 bar, Design structure=Piston seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 120 l/min |
| Operating pressure | 3.5 ... 8 bar |
| Design structure | Piston seat |
| Type of reset | mechanical spring |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | Piloted |
| Flow direction | non reversible |
| Note on forced dynamisation | Switching frequency at least once a week |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Medium temperature | '-10 ... 60 °C |
