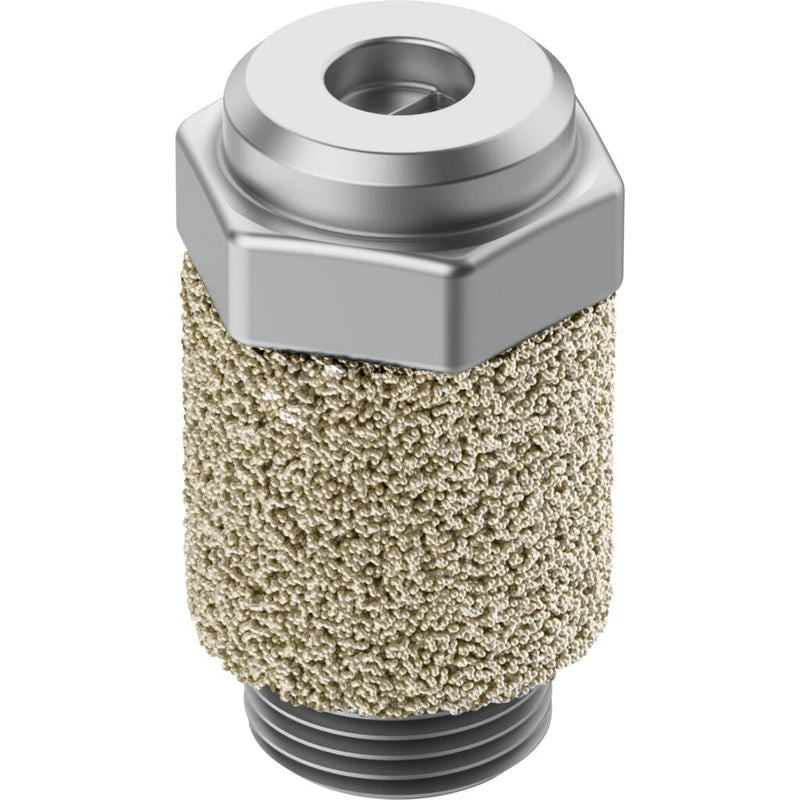

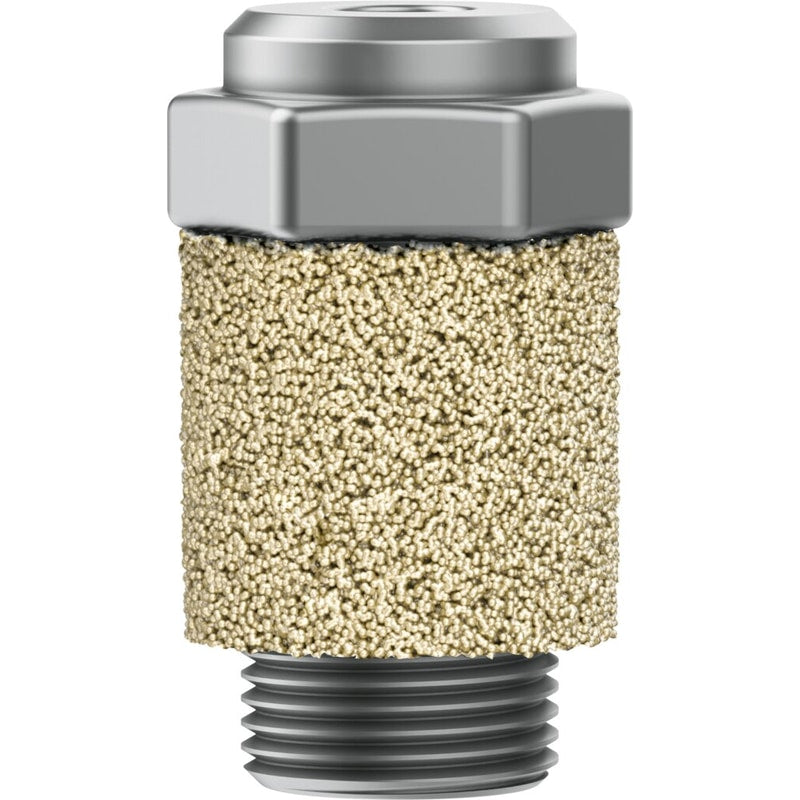

Exhaust air flow control valve
GRE-1/8-NPT
10057
GTIN 4052568303549
Vendor Festo
- Valve function
- Sound pressure flow control function
- Pneumatic connection 1
- 1/8 NPT
- Operating pressure
- 0 bar - 10 bar
- Adjusting element
- Slotted screw
Regular price
$27.90
Unit price
GRE-1/8-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRE-1/8-NPT
Regular price
$27.90
Unit price
GRE-1/8-NPT is backordered and will ship as soon as it is back in stock.
exhaust air flow control valve GRE-1/8-NPT With sintered metal silencer. Valve function=Flow control – silencer function, Pneumatic connection, port 1=NPT1/8-27, Adjusting element=Slotted head screw, Mounting type=Threaded, Standard flow rate 6 -> 0 bar=0 - 520 l/min
| Valve function | Flow control – silencer function |
|---|---|
| connection 1 | NPT1/8-27 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard flow rate 6 -> 0 bar | 0 ... 520 l/min |
| Operating pressure | 0 ... 10 bar |
| Ambient temperature | '-10 ... 70 °C |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 70 °C |
| Materials note | Conforms to RoHS |
| Design | Flow Control Muffler |
